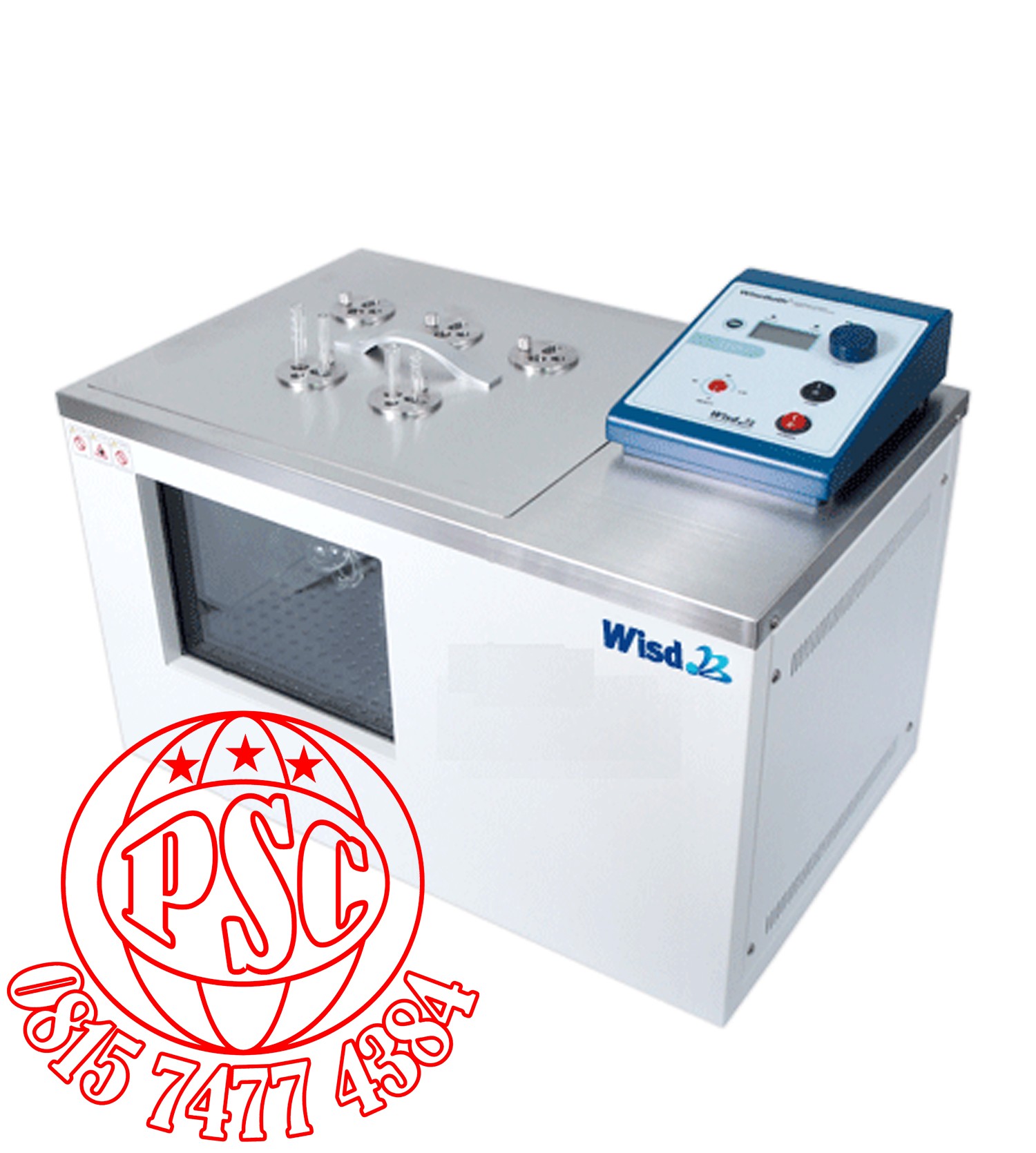

Viscosity Bath WVB-30 Daihan Scientific

Specification

Model

“WVB- 30”

Available 5 × Viscometer, 30Lit.

Temp. Range & Accuracy

Ambient +5 ℃ to 100 ℃,  ±0.1 ℃

Temp. Resolution

0.1 ℃-Display, 0.1 ℃-Control

Temp. Uniformity & Probe

±0.2 ℃ , PT100

Heating Power

2 kW

Pump

Magnetic Drive, Max. Flow 30 Lit./min

Timer & Alarm

99 hr 59 min ( Delay & Continuous run ), Error status & Timer-end

Display

Digital LCD with Back - Light Function

Controller

Digital Fuzzy Controller with Jog - Shuttle Switch ( Turn+Push )

Safety Circuit

Over-Temp./-Current protection, Sensor Error Detection

Lid

Included 5- or 9-Holes Stainless steel Lid for Viscometer Holder

Drain Valve

Mounted

Viewing Window Size

230 × 180 mm

Material

Stainless steel (＃304)-Internal,  Powder Coated steel-External,

Vacuum Sealed and Tempered Safety Pair Glasses-Window

Dimension

( W x D x H )

Effective

330 × 300 × h260 mm

Space

Internal

350 × 300 × h300 mm

External

585 × 375 × h420 mm

Packing Size &

640 × 450 × h500 mm

Gross Weight

24 kg

Power Supply & Cord/Plug

1 Phase, AC 120V, 60Hz or  230V, 50 / 60Hz
