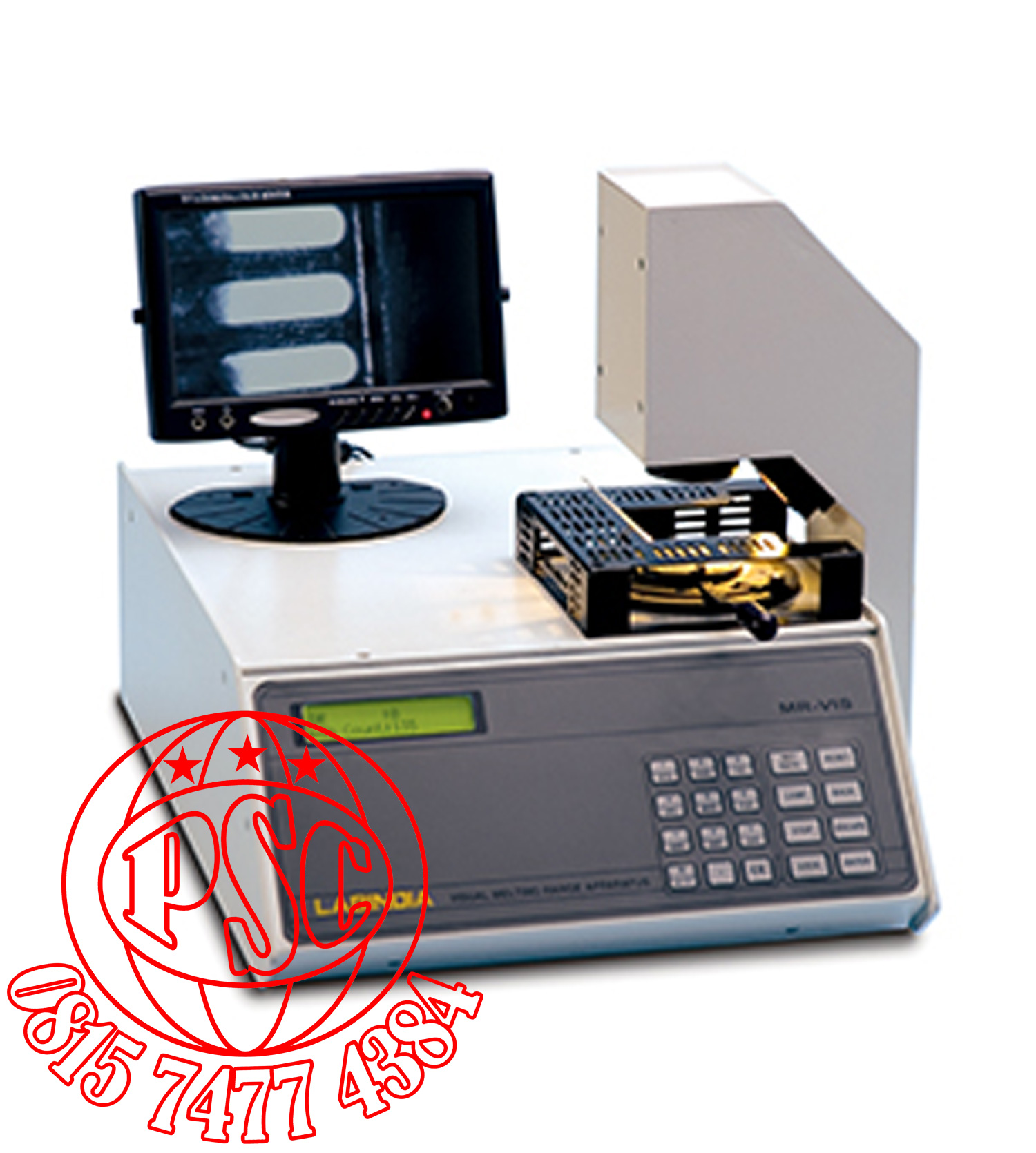

Visual Melting Range Apparatus MR-Vis Labindia

Standard Features

1. State-of-the-art design, suitable for white as well as coloured samples in powdered form.

2. Instrument can detect melting range as well as melting point of various types of samples.

3. Magnified image of the sample can be viewed on a video monitor screen via CCD camera which helps observe physical changes.

4. GLP compliant printout with sample name, ID No., date, time etc. for authentication.

5. Calibration Mode - Built-in calibration facility for two-point auto calibration with USP standards.

6. Password protection for calibration mode.

7. Compliance with USP melting range procedure as per Class - I A & EP Method 2.2.60

8. Graphical report of temperature v/s. light units with indications for start of melting & end of melting.

9. Can also detect the melting range as well as melting point of decomposed samples, as well as waxy and polymer samples.

10. Patented design.

11. onscreen Parameter/ Result display facility ( Optional ).

Patented Technique - Change in the intensity of reflected light by the sample

Determines melting range & melting point of various samples

Compliant with USP melting range procedure as per Class 1A & EP method 2.2.60

User selectable operating mode- Manual & Auto

Most suitable for powdered white & colored samples, can also be used for decomposed samples as well as waxy & polymer samples

Calibration  Mode-Built  in  calibration  facility  for  2  point  auto calibration with USP Standards

GLP compliant printout with sample name, ID No., date, time, etc for authentication

Graphical report of temperature v/s light units with indications for start of melting & end of melting

User friendly software with 20 method storage

onscreen Parameter/Result Display facility ( MR VIS+ )
