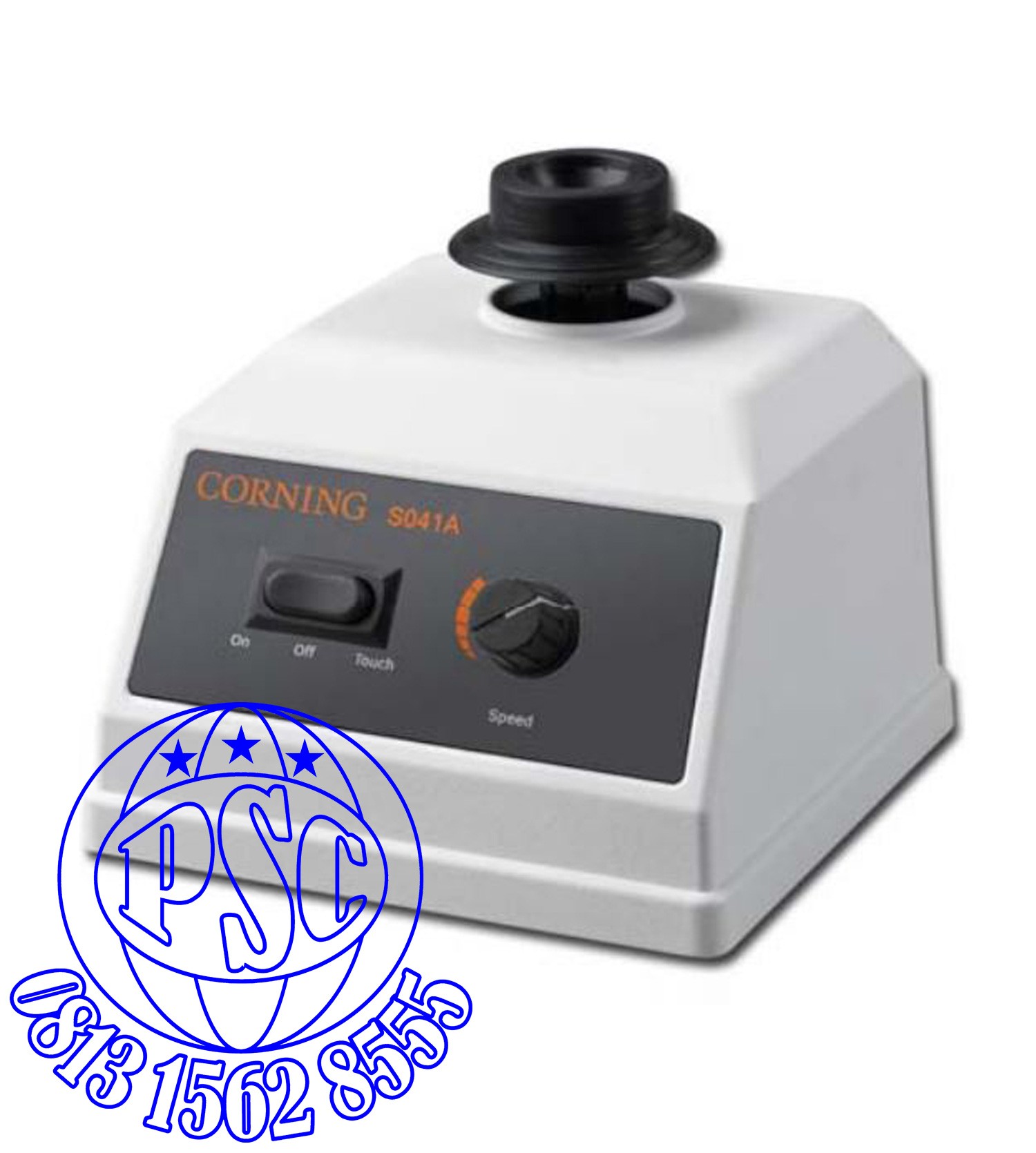

Corning® LSE™ Vortex Mixer

The Corning variable speed LSE Vortex Mixer provides fast, efficient mixing with minimal vibration.

The unit features a powerful, counter-balanced motor drive, continuous or "touch" mix modes.

A range of accessories are available for all common sample tubes and containers.

Variable speed for gentle to vigorous mixing

Optimized counter balance for minimal vibration

Lightweight and portable

Includes cup head for all standard microtubes and centrifuge tubes

Mix a variety of tubes and plates with optional accessory heads

Touch and continuous mix modes

Weight

2.2 kg

Power

120 V-50/60 Hz

Dimensions ( L x W x H )

14 x 16 x 13 cm

Speed

0-3400 rpm

Operating Conditions

The Corning â LSE ä Vortex Mixer is designed to be safe under the following conditions :

For indoor use only

Altitude up to 2000 meters

Ambient temperature of 4 °C to 65 °C

Maximum relative humidity 80 % for temp. up to 31 °C then decreasing linearly to 50 % relative humidity at 40 °C

Main supply voltage fluctuations not to exceed ± 10 % of the nominal voltage

Installation Category II

Pollution Degree 2

Position at least 30 cm from walls, 30 cm from ceilings and 30 cm between mixers if using multiple units

Technical Specifications

Model

Catalog

Operating

Power

Speed

Weight

Number

Mode

( Volts/Hz/ Amp )

Range

LSE Vortex

6775

Touch or

120 V/60 Hz/0.6

200-3400 rpm

6.0 lbs.

Mixer 120 V

Continuous

2.5 kg.

LSE Vortex

6776

Touch or

230 V/50 Hz/0.3

200-2850 rpm

6.0 lbs.

Mixer 230 V EU Plug

Continuous

2.5 kg.

LSE Vortex

6777

Touch or

230 V/50 Hz/0.3

200-2850 rpm

6.0 lbs.

Mixer 230 V UK Plug

Continuous

2.5 kg.
