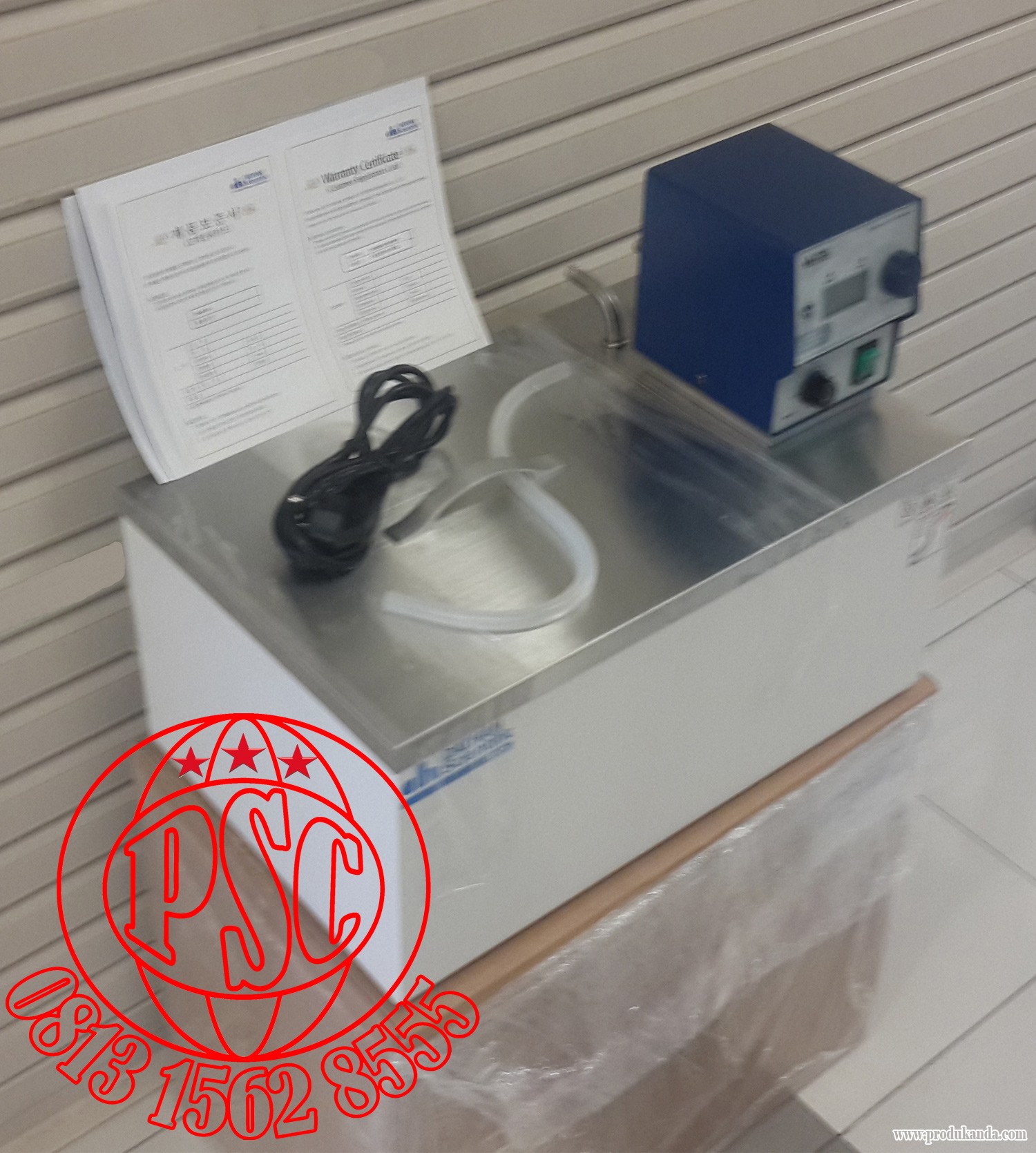

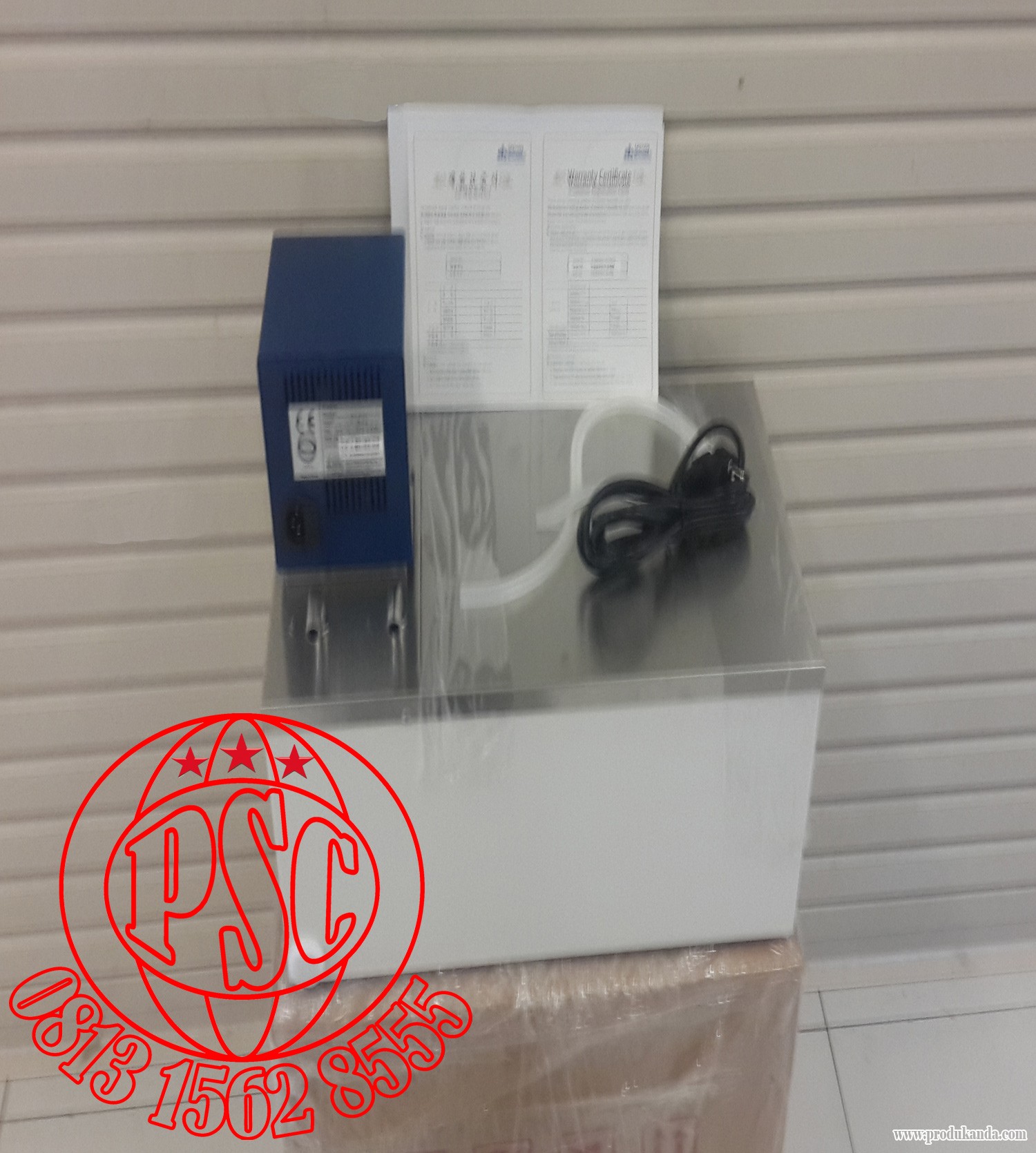

Water Bath WB Series Daihan Scientific

Digital Precise Water Bath, “WB”, 6-/11-/22- Lit., up to 100 ℃, ±0.1 ℃, CE-Certi. with Digital Fuzzy Control System, 1× Stainless steel Flat Lid, and Back Light LCD, with Certi. & Traceability

■ with Certificate & Traceability :

   Controlled by Serial Number, Certificate, Delivery-information,and Traceable Data base System

■ Digital Fuzzy Control System Implementing Superior Temperature Accuracy

■ Patented Jog-Shuttle Control System and Digital LCD with Back - Light Function

■ PL ( Product Liability ) Insurance

� User's Self-Compensation Function to Control Difference between Real Temp. and Indicated Temp. (±10.0 ℃).

� 304 Stainless steel Bath & Lid for Superior Durability & High Thermal Efficiency / Constant.

� Digital Timer Function ( 99 hr 59 min )‘:  Delay Time’and‘Operation Time’can be Controlled.

� Storage Function for the Set Values of Temperature and Timer.

� Locking Mode Supported for Experimental Safety (Input to Jog-Shuttle can be Disabled).

Specification

Capacity & Models

6 Lit. “WB - 6”

11 Lit. “WB - 11”

22 Lit. “WB - 22”

Temp. Range & Accuracy

Ambient＋5 ℃~ 100℃, ±0.1 ℃

Temp. Resolution

0.1 ℃-Display, 0.1 ℃-Control

Temp. Uniformity & Probe

±1.0 ℃, PT100

Heating Power

800 W

1 kW

2 kW

Timer & Alarm

99 hr 59 min ( Delay & Continuous run ), Error status & Timer-end

Display

Digital LCD with Back - Light Function

Controller

Digital Fuzzy Controller with Jog - Shuttle Switch ( Turn＋Push )

Safety Circuit

Over-Temp. / -Current protection, Sensor Error Detection

Material

Stainless steel ( ＃304 )-Internal, Powder Coated steel-External

Lid

Included Stainless steel Flat Lid,  Optional Dome Lid

Drain Valve

None

Mounted ( Φ9.5~11 mm )

Dimension ( W x D x H )

Effective Space

300 × 155 × h110 mm

302 × 240 × h110 mm

500 × 295 × h110 mm

Internal

300 × 155 × h150 mm

302 × 240 × h150 mm

500 × 295 × h150 mm

External

325 x 180 × h260 mm

325 × 265 × h260 mm

535 × 330 × h260 mm

Packing Size and

350 × 210 × h310 mm

350 × 300 × h310 mm

570 × 360 × h310 mm

Gross Weight ( kg )

8 kg

10 kg

14 kg

Power Supply

1 Phase, AC 120 V, 60 Hz or  AC 230 V, 50 / 60 Hz
