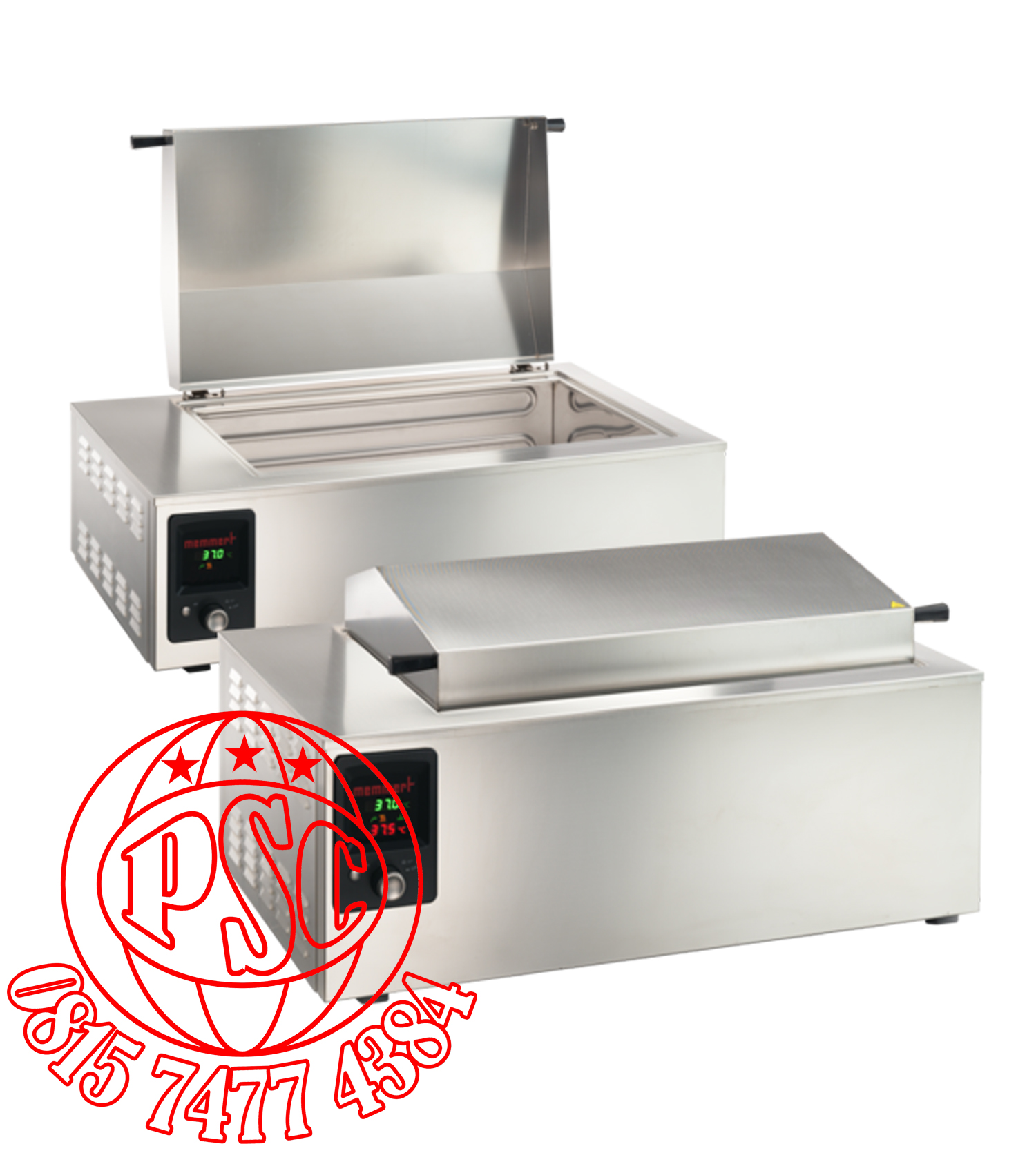

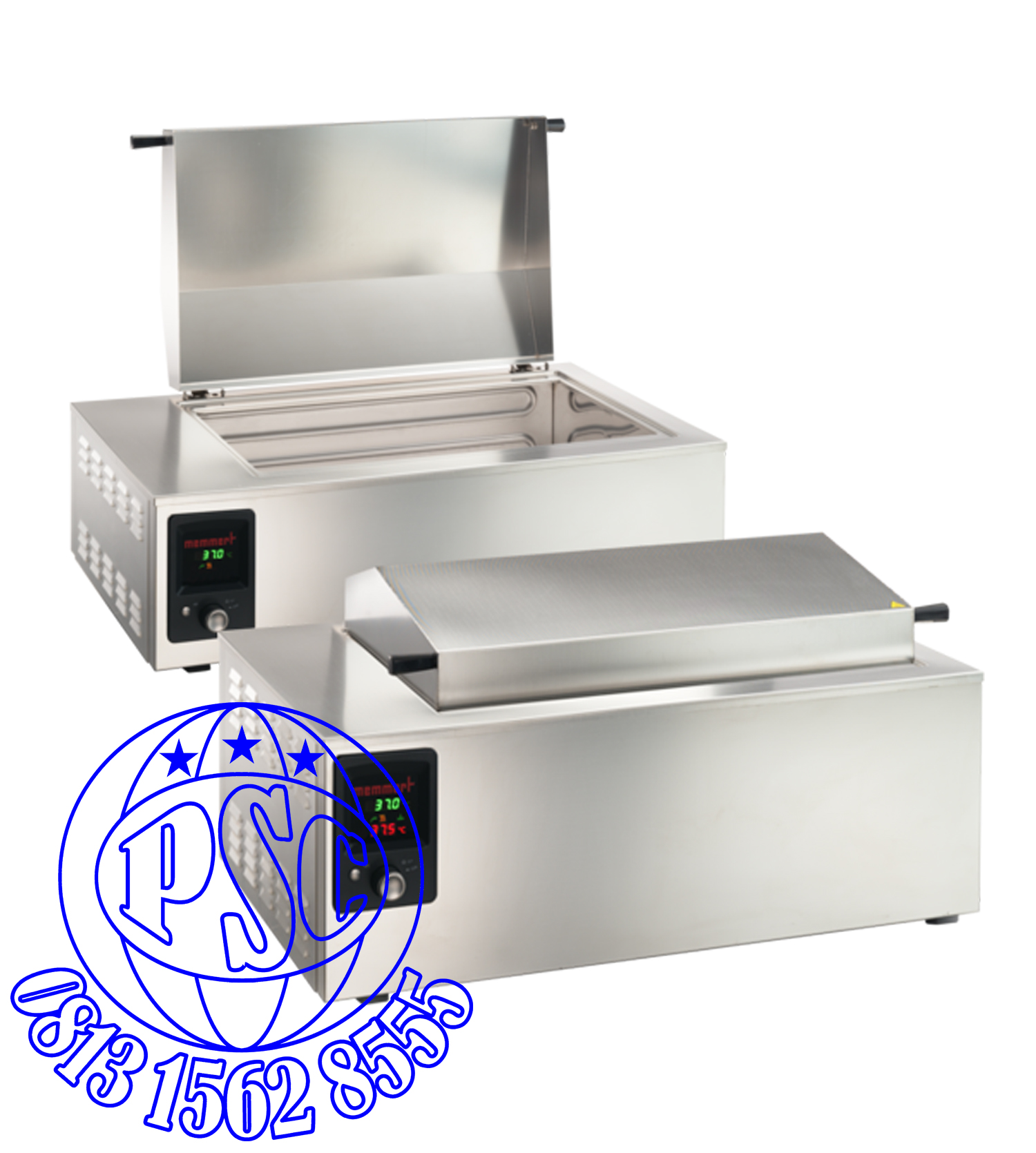

Water Bath WNB Series Memmert

Model

WNB 7

WNB 10

WNB 14

 WNB 22

WNB 29

WNB 45

Temp. range in °C

Min. 5 °C above ambient up to +95 °C with additional boiling mode (+100 °C )

Temp.

1 Pt100 sensor class A in 4-wire-circuit

Timer

Integrated digital timer from 1 min. to 99,59 hours

Temp. control

30 °C above max. Temp. of the bath

Temp. control

Approx. 10 °C

Autodiagnostic system

Microprocessor PID-temp. controller with integrated autodiagnostic system with fault indicator

Heating Baths

Corrosion-proof large-area heating on three sides

Controller

LED of set and actual temp. ( 0,1 °C resolution ) and of ( remaining ) programme time

Stainless steel interior

Dim. WxHxD mm

240x140x210

350x140x210

350x140x290

350x220x290

590x140x350

590x220x350

Interior

Easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded

Volume

7 l

10 l

14 l

22 l

29 l

45 l

Liquid level min. mm

(H) 97

(H) 97

(H) 97

(H) 177

(H) 105

(H) 177

Liquid level max. mm

(I) 120

(I) 120

(I) 120

(I) 200

(I) 120

(I) 200

Textured stainless steel casing

Dim. w(D)xh(G)xd(E) mm

468x337x356

578x337x356

578x347x436

578x405x436

818x343x516

818x401x516

Voltage

230 V, 50/60 Hz

Electrical load W

1200

1800

2000

2400

2800

Installation

Min. wall spacing on all sides is 80 mm. The min. spacing from the top of the bath to the next ceiling is 750 mm

Ambient temp.

+5 °C to +40 °C

Humidity rh

Max. 80 %, non-condensing

Overvoltage category

II

Pollution degree

2

Transport information

The appliances must be transported upright

Dimensions approx incl mm

 570x450x420

670x450x380

670x530x400

670x530x460

910x610x400

910x610x460

Approx N.W. kg

11

13

15

16

24

26

Approx G. W. Carton kg

16

19

21

23

31

33
