Water Quality Monitoring Aquaread AP-5000

Aquaprobe AP-5000 Meter with GPS & 14 Parameters, Package

Parameter

pH, ORP, Conductivity, TDS, SSG, Resistivity, Salinity, Dissolved Oxygen, Temperature, Depth, 4 Parameter ISE/Optical

Complete with

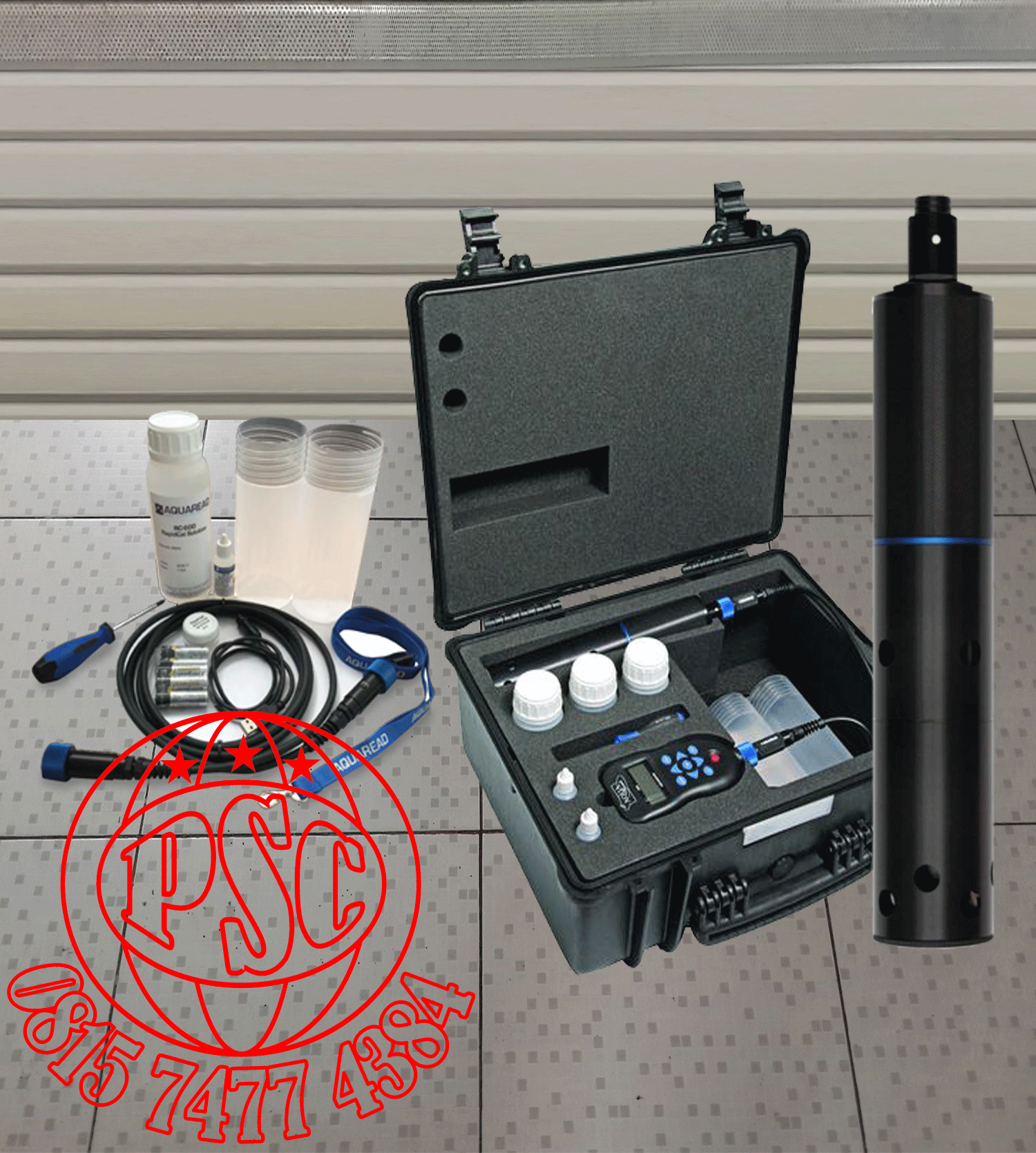

Probe with Optical DO, EC, pH, ORP, Temperature & Depth sensor, 3 M Cable, Various Accessories, Carry Case. Comes with 4 more expansion ports

Standard Parameters

Dissolved Oxygen

Range

0 – 500.0 % / 0 – 50.00 mg/L

Resolution

0.1 % / 0.01mg/L

Accuracy

0 – 200 % : ± 1 % of reading. 200 % – 500 % : ± 10 %

Conductivity ( EC )

Range

0 – 200 mS/cm ( 0 – 200,000 µS/cm )

Resolution

3 Auto-range scales : 0 – 9999 µS/cm, 10.00 – 99.99 mS/cm, 100.0 – 200.0 mS/cm

Accuracy

± 1 % of reading

TDS*

Range

0 – 100,000 mg/L ( ppm )

Resolution

2 Auto-range scales : 0 – 9999 mg/L, 10.00 – 100.00 g/L

Accuracy

± 1 % of reading

Resistivity*

Range

5 Ωcm – 1 MΩcm

Resolution

2 Auto-range scales : 5 – 9999 Ωcm, 10.0 – 1000.0 KΩcm

Accuracy

± 1 % of reading

Salinity*

Range

0 – 70 PSU / 0 – 70.00 ppt ( g/Kg )

Resolution

0.01 PSU / 0.01 ppt

Accuracy

± 1 % of reading

Seawater Specific Gravity*

Range

0 – 50 st

Resolution

0.1 st

Accuracy

± 1.0 st

pH

Range

0 – 14 pH / ± 625 mV

Resolution

0.01 pH / ± 0.1 mV

Accuracy

± 0.1 pH / ± 5 mV

ORP

Range

± 2000 mV

Resolution

0.1 mV

Accuracy

± 5 mV

Temperature

Range

-5 °C – +50 °C ( D3323 °F – 122 °F )

Resolution

0.01 °C/F

Accuracy

± 0.5 °C

Optional Parameters

Depth **

Range

0-60 m ( AP-2000 & AP-5000 ), 0 – 100 m ( AP-7000 )

Resolution

0.01 m

Accuracy

±0.5 % FS ( AP-2000 & AP-5000 ), ±0.2 % FS ( AP-7000 )

**Option on the AP-2000. Comes as standard on the AP-5000 & AP-7000

Ion Specific Electrodes***

Ammonium

Range

0 – 9,000 mg/L ( ppm )

Resolution

2 Auto-range scales : 0.00 – 99.99 mg/L, 100.0 – 9,000 mg/L

Accuracy

± 10 % of reading

Ammonia†

Range

0 – 9,000 mg/L ( ppm )

Resolution

2 Auto-range scales : 0.00 – 99.99 mg/L, 100.0 – 9,000 mg/L

Accuracy

± 10 % of reading

Chloride

Range

0 – 20,000 mg/L ( ppm )

Resolution

2 Auto-range scales : 0.00 – 99.99 mg/L, 100.0 – 20,000 mg/L

Accuracy

± 10 % of reading

Flouride

Range

0 – 1,000 mg/L ( ppm )

Resolution

2 Auto-range scales : 0.00 – 99.99 mg/L, 100.0 – 999.9 mg/L

Accuracy

± 10 % of reading

Nitrate

Range

0 – 30,000 mg/L ( ppm )

Resolution

2 Auto-range scales : 0.00 – 99.99 mg/L, 100.0 – 30,000 mg/L

Accuracy

± 10 % of reading

Calcium

Range

0 – 2,000 mg/L ( ppm )

Resolution

2 Auto-range scales : 0.00 – 99.99 mg/L, 100.0 – 2,000 mg/L

Accuracy

± 10 % of reading

† Ammonium electrode required. Readings calculated from Ammonium, pH and temperature electrode values.
