Water Quality Monitoring Aquaread AP-800-P & AP-800-O-P

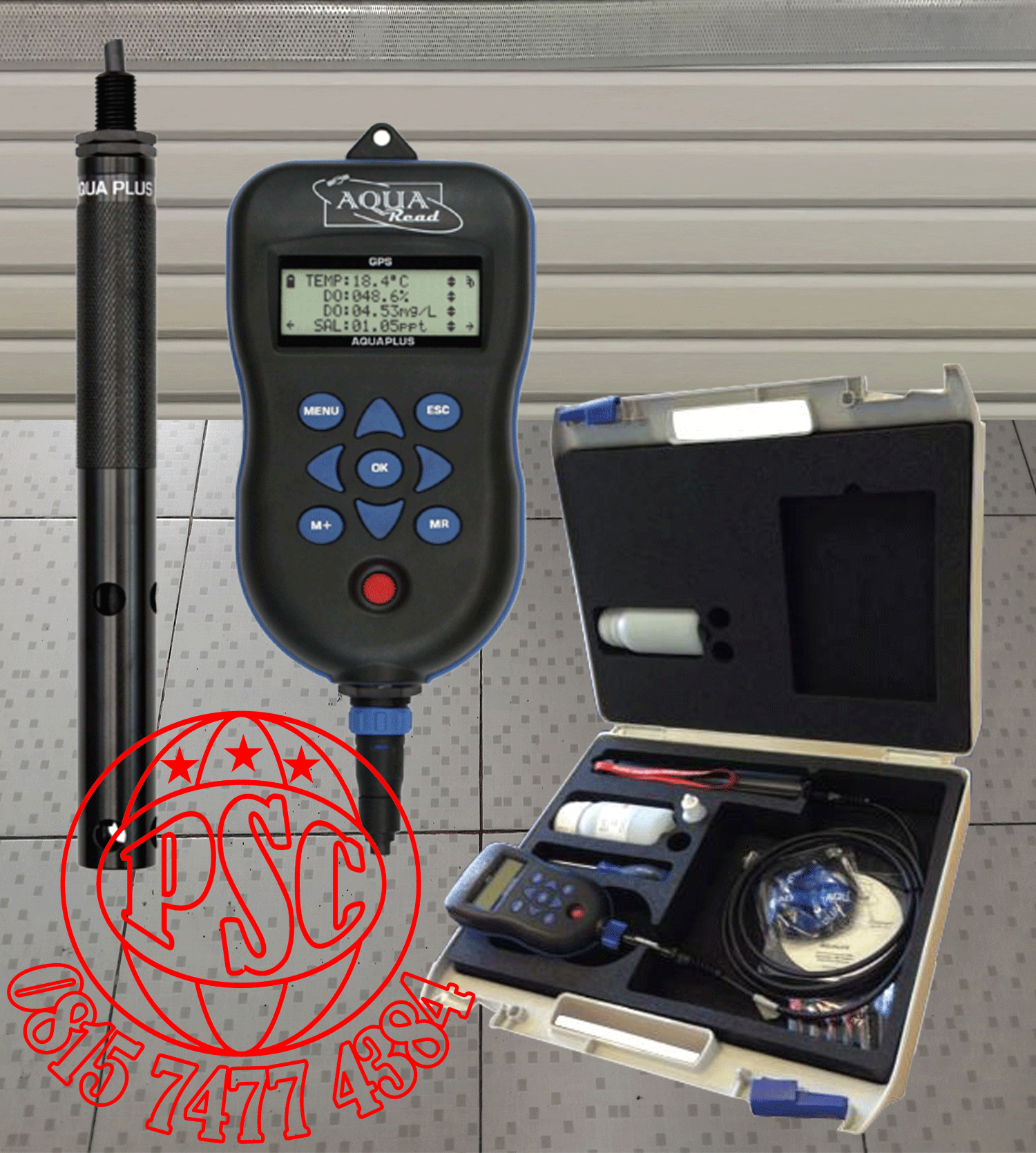

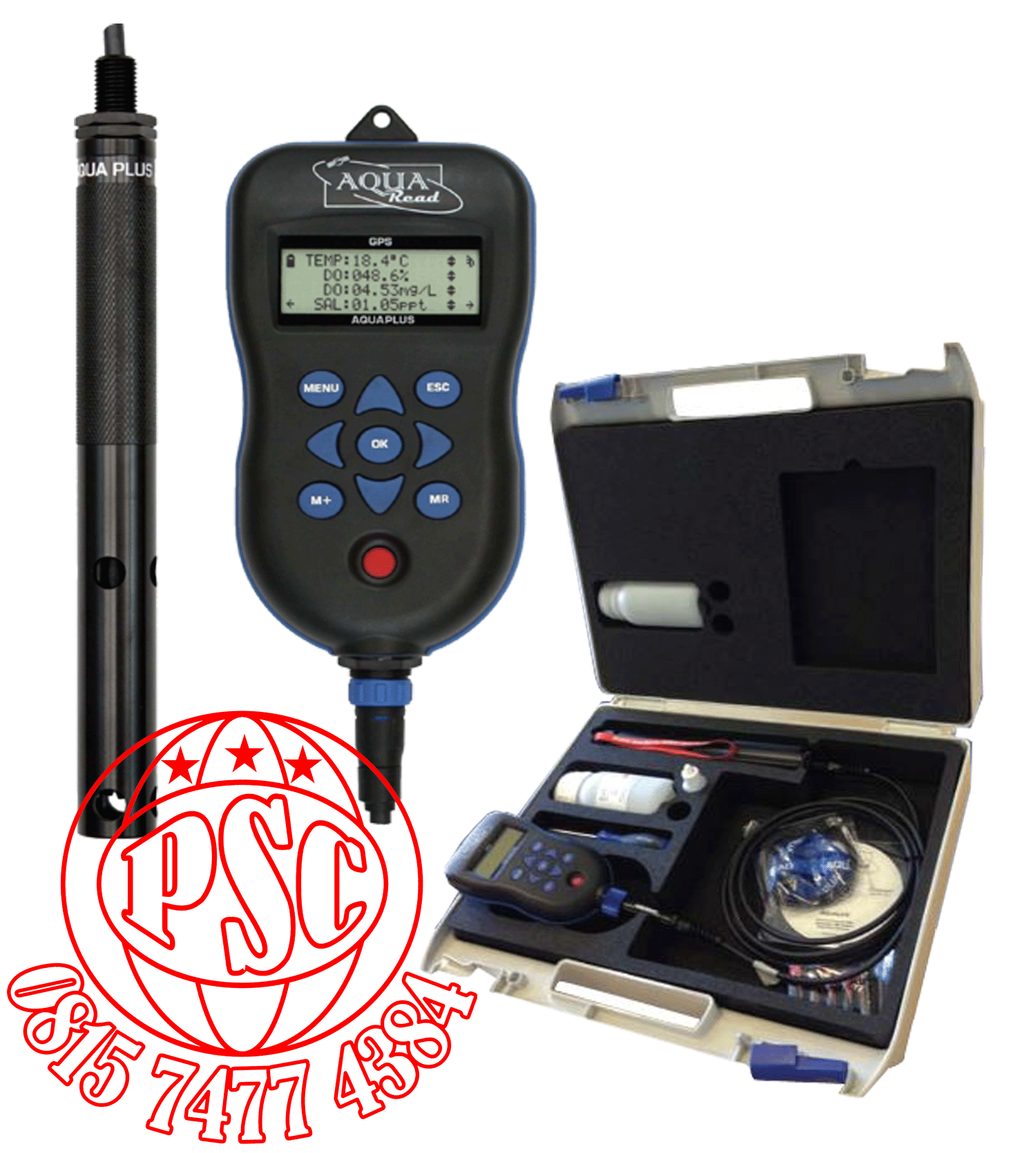

Aquaprobe AP-800 Meter with GPS & 10 Parameters, Package

AP-800-P Parameter

pH, ORP, Conductivity, TDS, SSG, Resistivity, Salinity, Dissolved Oxygen, Temperature, Turbidity

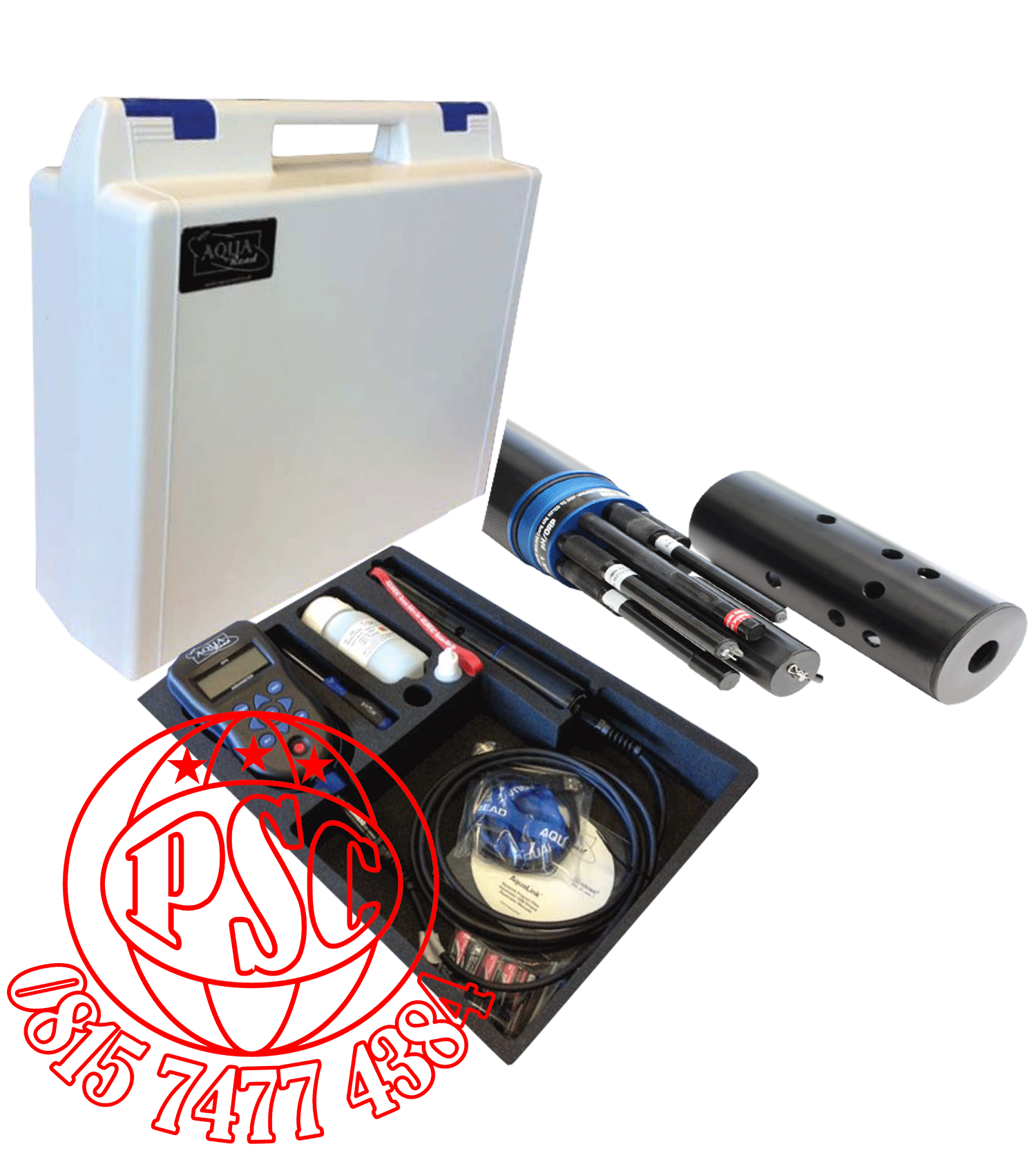

AP-800-P Compelete with

Probe with Galvanic DO, EC, pH, ORP, Temperature & Turbidity Sensor, 3 M Cable, Various Accessories, Carry Case

AP-800-O-P Parameter

pH, ORP, Conductivity, TDS, SSG, Resistivity, Salinity, Dissolved Oxygen, Temperature, Turbidity

AP-800-O-P Compelete with

Probe with Optical DO, EC, pH, ORP, Temperature & Turbidity Sensor, 3 M Cable, Various Accessories, Carry Case

Specifications

Dissolved Oxygen

Range

0 – 500.0 % / 0 – 50.00 mg/L

Resolution

0.1 % / 0.01 mg/L

Accuracy

0 - 200 % : ± 1 % of reading. 200 % - 500 % : ± 10 %

Conductivity ( EC )

Range

0 – 200 mS/cm ( 0 - 200,000  S/cm )

Resolution

3 Auto-range scales : 0 – 9999 S/cm, 10.00 – 99.99 mS/cm, 100.0 – 200.0 mS/cm

Accuracy

± 1 % of reading or ± 1  S/cm if greater

TDS*

Range

0 – 100,000 mg/L ( ppm )

Resolution

2 Auto-range scales : 0 – 9999 mg/L, 10.00 – 100.00 g/L

Accuracy

± 1 % of reading or ± 1 mg/L if greater

Resistivity*

Range

5 •cm – 1 M •cm

Resolution

2 Auto-range scales : 5 – 9999  •cm, 10.0 – 1000.0 K •cm

Accuracy

± 1 % of reading or ± 1 • cm if greater

Salinity*

Range

0 – 70 PSU / 0 – 70.00 ppt ( g/Kg )

Resolution

0.01 PSU / 0.01 ppt

Accuracy

± 1 % of reading or ± 0.1 unit if greater

Seawater Specific Gravity*

Range

0 – 50 t

Resolution

0.1 t

Accuracy

± 1.0 t

pH

Range

0 – 14 pH / ± 625 mV

Resolution

0.01 pH / ± 0.1 mV

Accuracy

± 0.01 pH / ± 5 mV

ORP

Range

± 2000 mV

Resolution

0.1 mV

Accuracy

± 5 mV

Temperature

Range

-5 ˚C – +50 ˚C ( 23 ˚F – 122 ˚F D32 )

Resolution

0.1˚ C/F

Accuracy

± 0.5 ˚C

Turbidity**

Range

0 – 3000 NTU

Resolution

2 Auto-range scales : 0.099.9 NTU, 100 – 3000 NTU

Repeatability

± 2 % of reading

* Readings  calculated from EC and temperature electrode values

**Turbidity  only available on the AP-800
