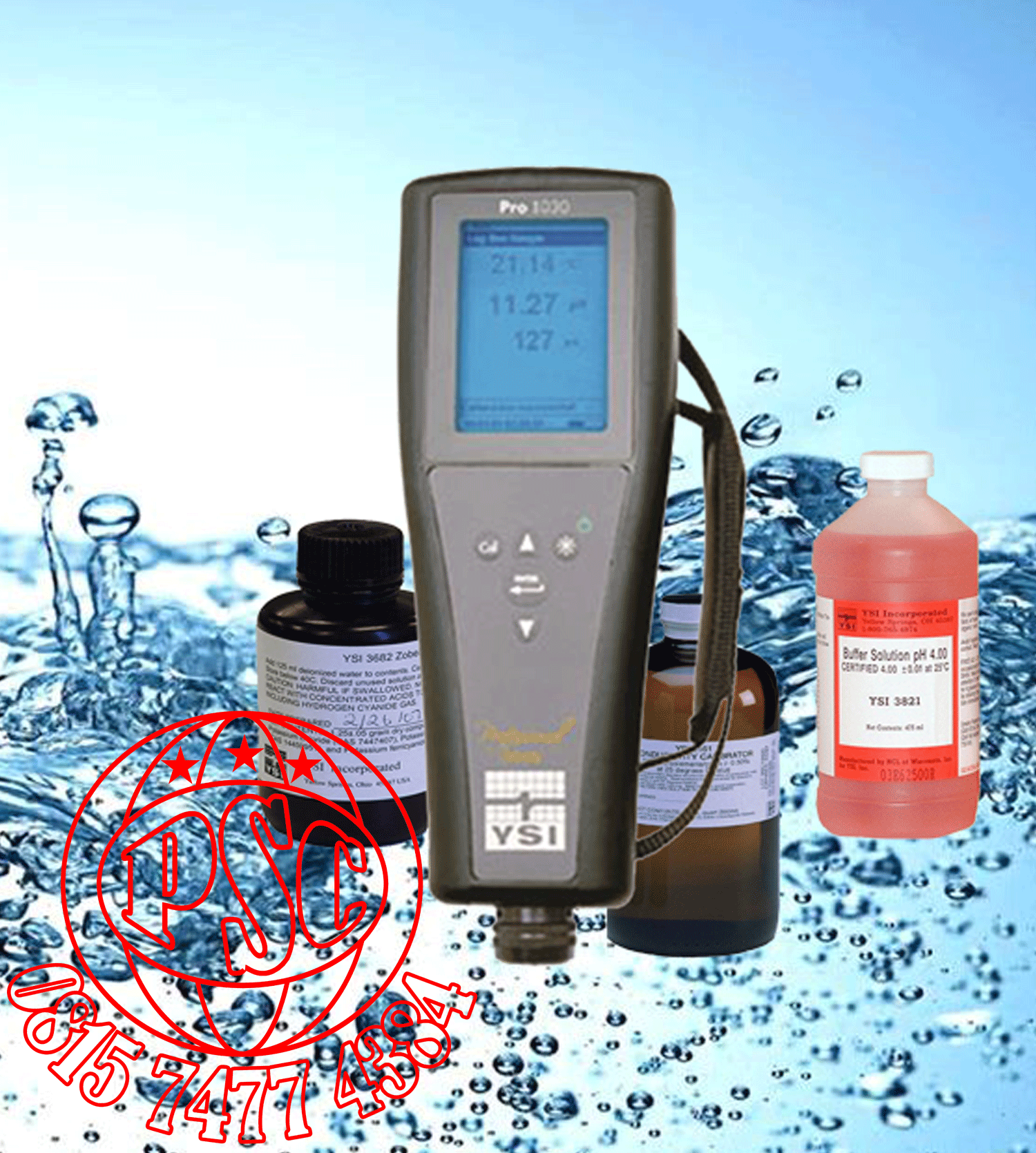

YSI Pro1030 pH or ORP Conductivity Salinity Meter

Pro1030 System Specifications ( Instrument, Probe, and Cable )

Temperature

Range

-5 to 55 °C

Resolution

0.1 °C

Accuracy

±0.2 °C

pH

Range

0 to 14 pH units

Resolution

0.01

Accuracy

±0.2

ORP

Range

-1500 to 1500 mV

Resolution

1 mV

Accuracy

±20 mV

Conductivity

Range

0 to 500 µS/cm, 0 to 5 mS/cm, 0 to 50 mS/cm, 0 to 200 mS/cm ( auto ranging )

Resolution

0.0001 to 0.1 mS/cm, 0.1 to 0 µS/cm ( range dependent )

Accuracy

With 1- or 4-meter cable ±1.0 %  of the reading or 1 µS/cm, whichever is greater; With 10-, 20-, or 30-meter cables

±2.0 % of the reading or 1 µS/cm, whichever is greater; Instrument only ±0.5 %

Salinity

Range

0 to 70 ppt

Resolution

0.1 ppt

Accuracy

±1.0 % of the reading or ±0.1 ppt, whichever is greater

TDS

Range

0 to 100 g/L ( TDS constant range 0.3 to 1.00 with 0.65 being the default )

Resolution

0.0001 to 0.1 g/L ( range dependent )

Accuracy

Dependent on accuracy of temperature, conductivity and TDS constant

Size

8.3 cm width x 21.6 cm length x 2.3 cm depth ( 3.25 in. x 8.5 in. x 2.25  in.)

Weight with Batteries

475 grams ( 1.05 lbs.)

Power

2 alkaline C-cells providing ~425 hours of battery life ( without backlight ); low battery indicator when 1 hour is left

Cables

1- 4- 10- 20- and 30-m lengths ( 3.28, 13.1, 32.8, 65.6 and 98.4 ft. )

Warranty

3-year instrument; 2-year cable; 1-year pH and ORP sensors

Data Memory

50 data sets

Languages

English, Spanish, Portuguese, French

Certifications

RoHS, CE, WEEE, IP67 waterproof, 1-meter drop test

6051030

Pro1030 Handheld instrument

6051030-1

1-m cable for conductivity and temp ( both built into cable )/pH or ORP port

6051030-4

4-m cable for conductivity and temp ( both built into cable )/pH or ORP port; includes cable management  kit

6051030-10

10-m cable for conductivity and temp ( both built into cable )/pH or ORP port; includes cable management  kit

6051030-20

20-m cable for conductivity and temp ( both built into cable )/pH or ORP port; includes cable management  kit

6051030-30

30-m cable for conductivity and temp ( both built into cable )/pH or ORP port; includes cable management  kit

605101

pH Sensor ( not included with cable purchase )

605102

ORP Sensor ( not included with cable purchase )

603075

Carrying Case, soft-sided ( large case )

603162

Carrying Case, soft-sided ( small case, accommodates  up to 4-meter cable )

603074

Carrying Case, hard-sided ( large case )

603070

Shoulder Strap

603824

pH Buffers, assorted  case; 2 pints each of 4, 7, and 10 buffer

3821

pH 4 Buffer, case of 6 pints

3822

pH 7 Buffer, case of 6 pints

3823

pH 10 Buffer, case of 6 pints

60907

Conductivity Calibration Solution, 1,000 µS/cm, case of 8 pints

60911

Conductivity Calibration Solution, 10,000  µS/cm, case of 8 pints

60660

Conductivity Calibration Solution, 50,000  µS/cm, case of 8 pints

65274

Conductivity Calibration Solution, 100,000 µS/cm, case of 8 pints
